B.Lux

R2 S Suspended Lamp

Name: R2 S Suspended Lamp
Brand: B.Lux
SKU: 743310FU
Price: 4295.0 USD
Availability: InStock

$ 4,295.00

Ships from Spain. Lead time 10-12 weeks.
Make-To-Order

Designer: DAVID ABAD

Quantity:

The color samples are indicative and not intended as an exact replica of the actual color of the product. Due to variations in monitor settings and color balances, colors are representative only and should not be construed as an exact color match of the listed product.

Ask for more info

Made in Spain.

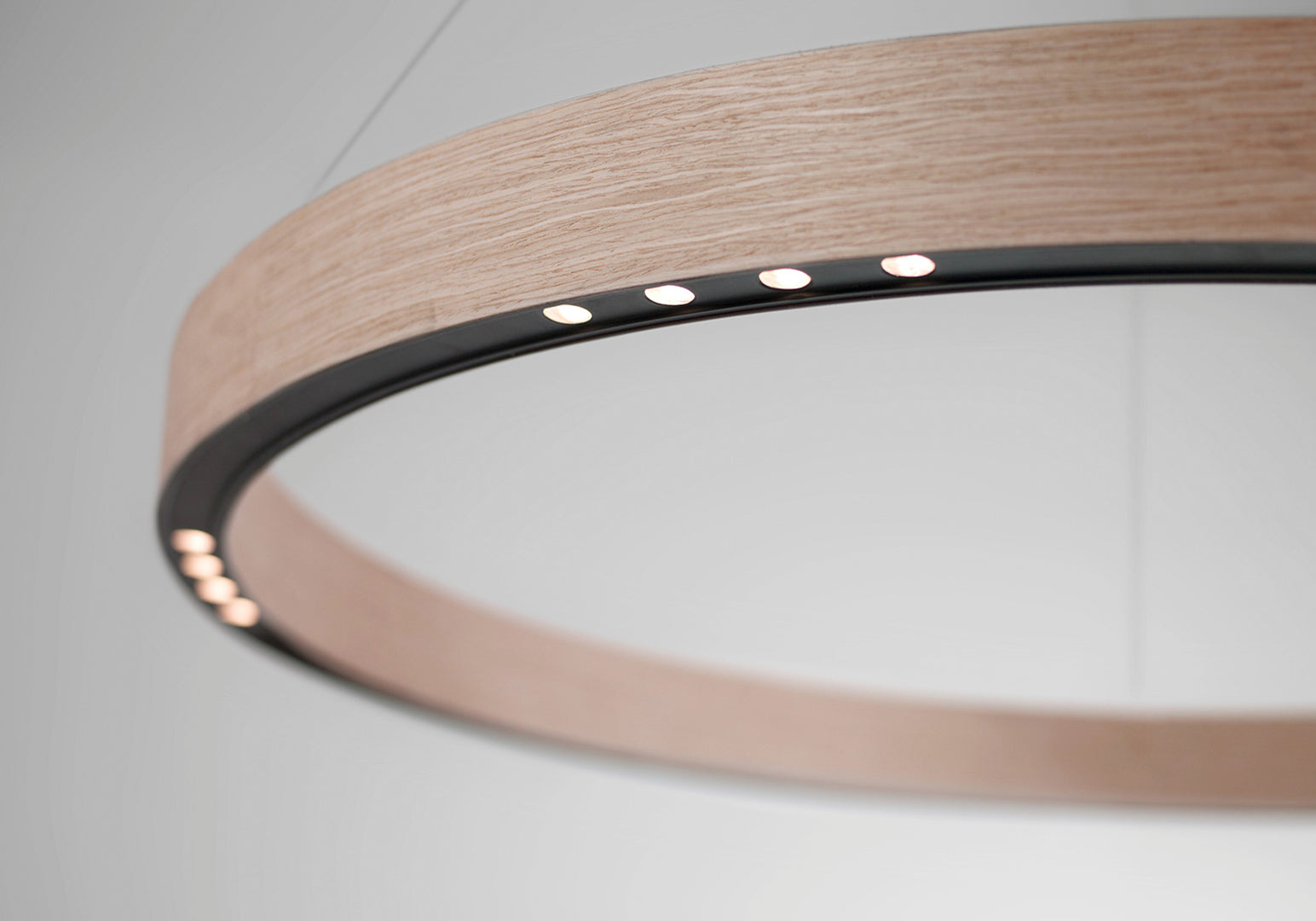

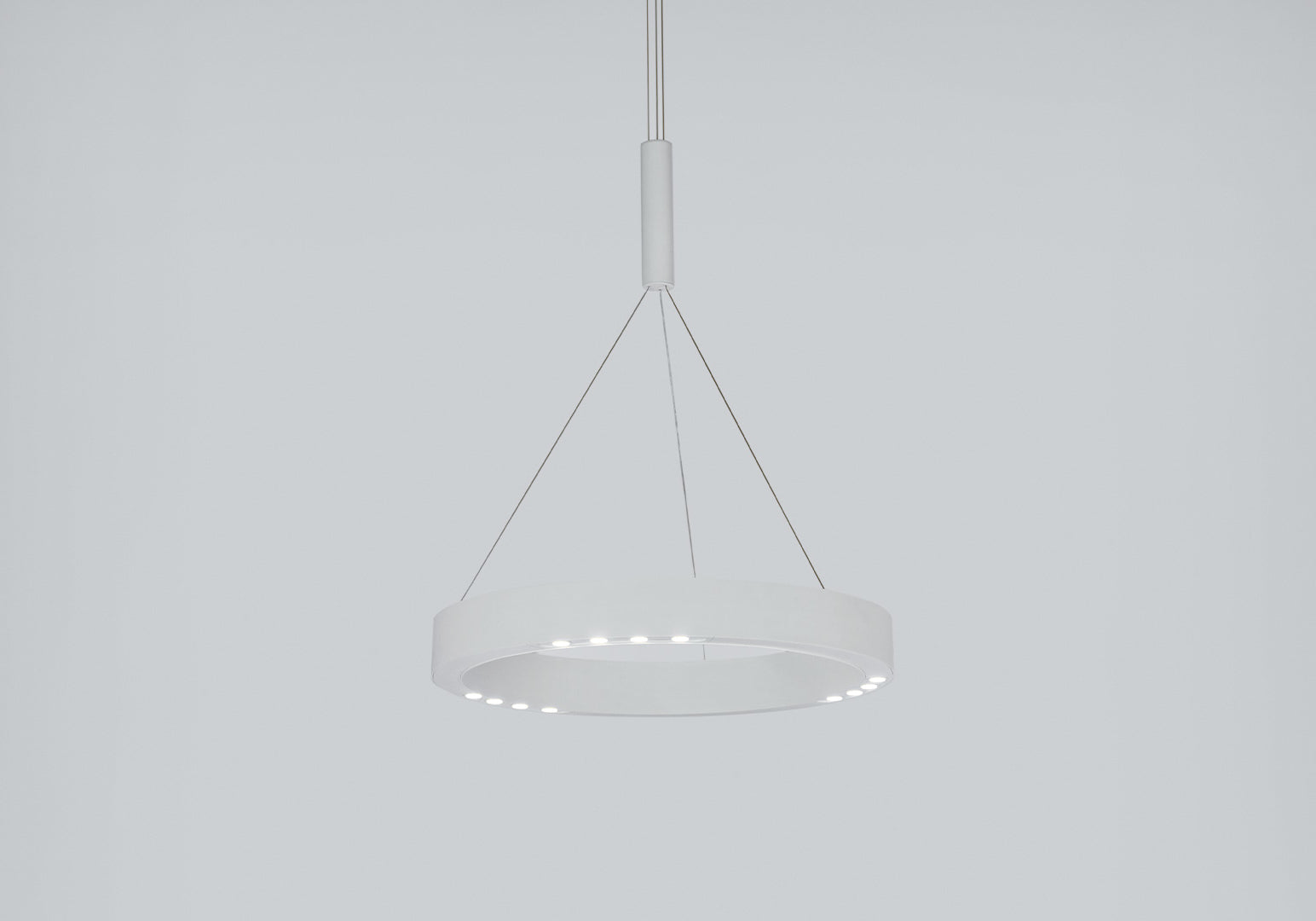

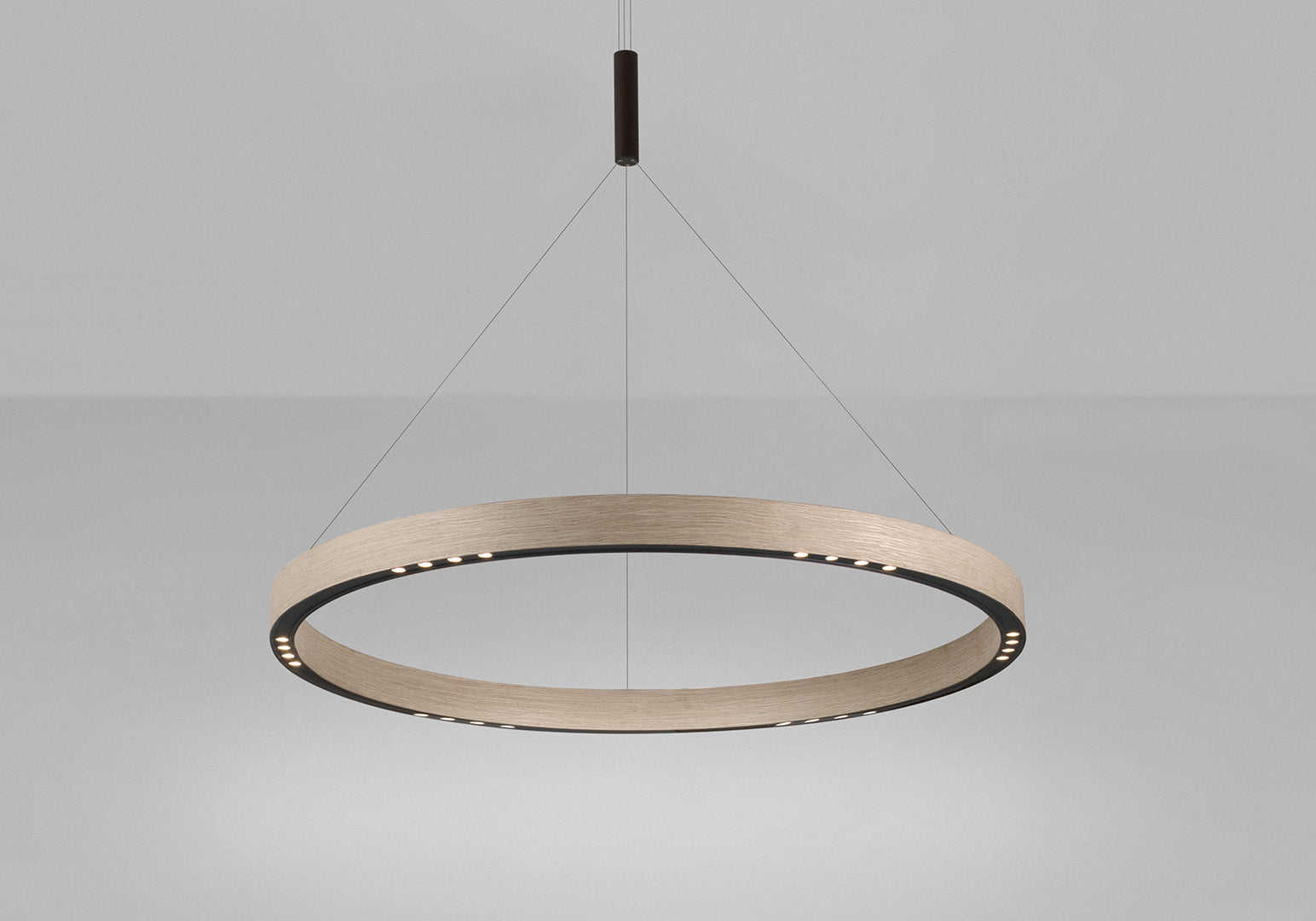

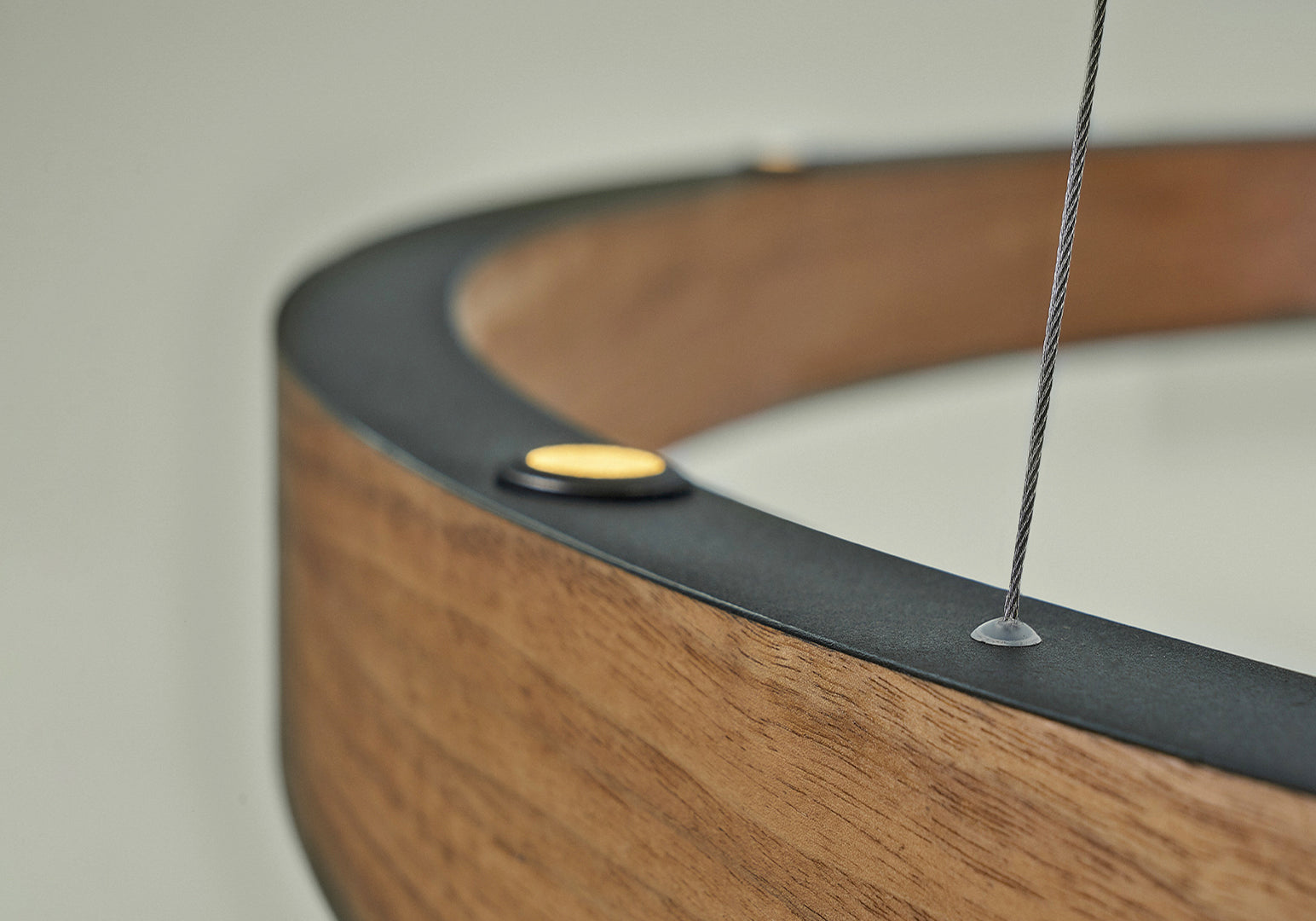

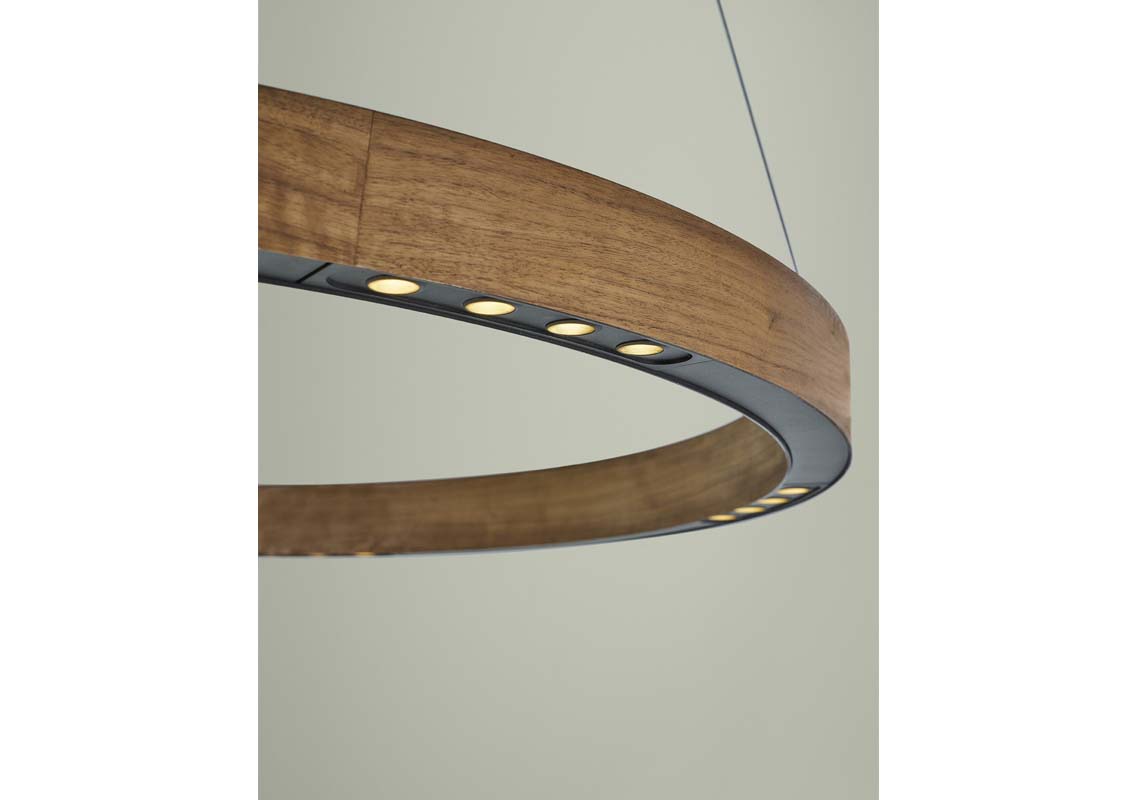

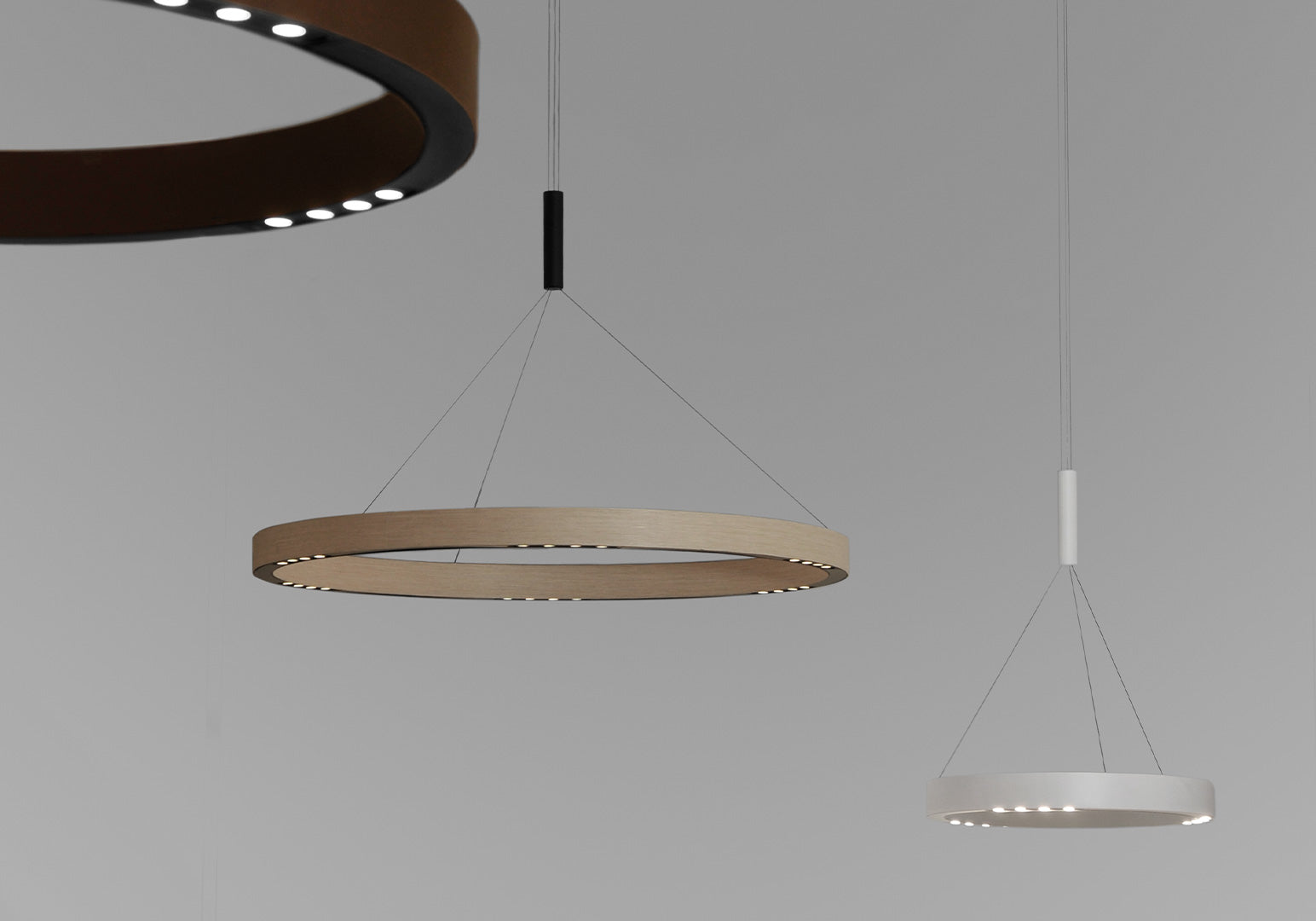

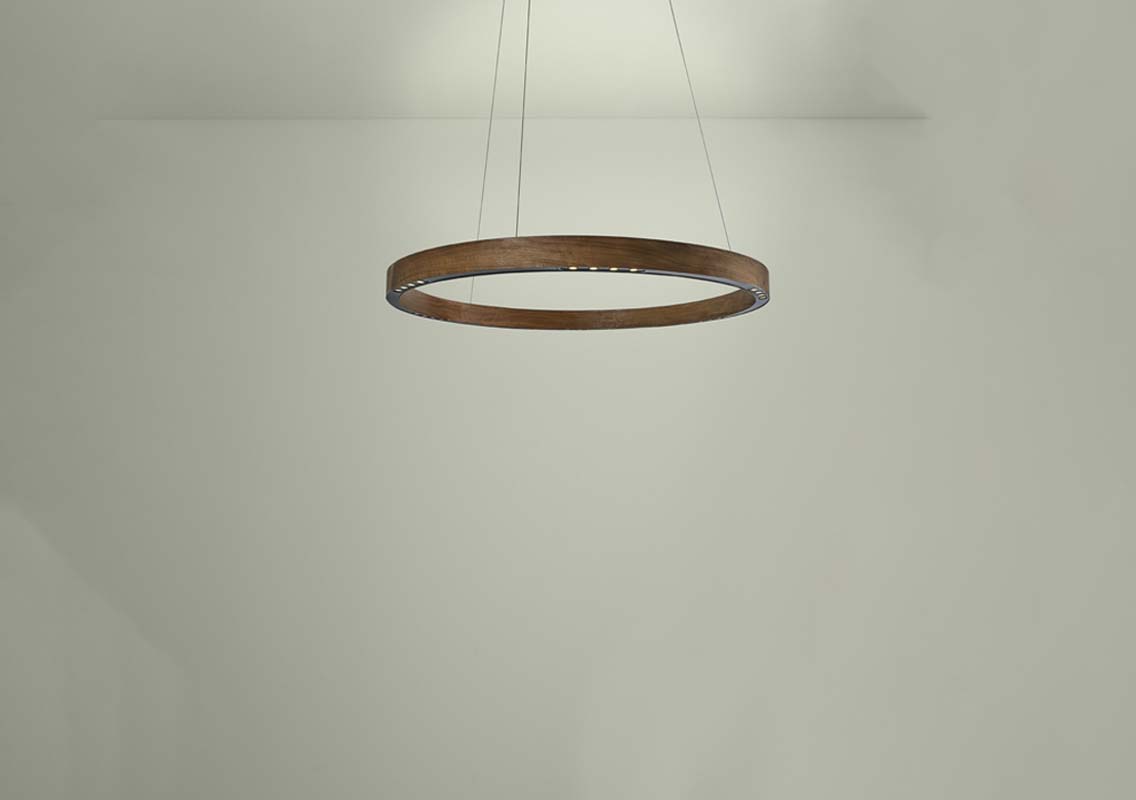

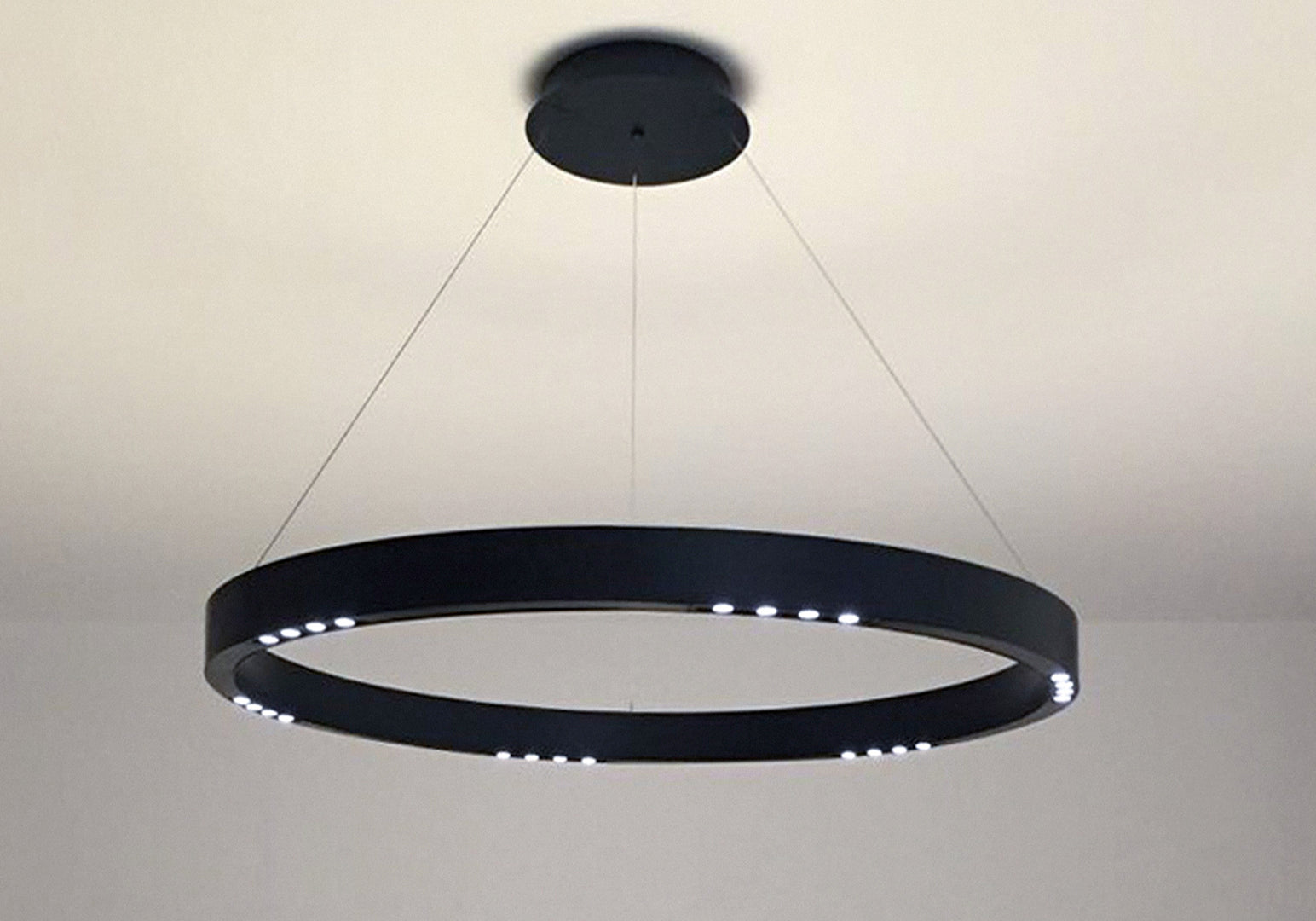

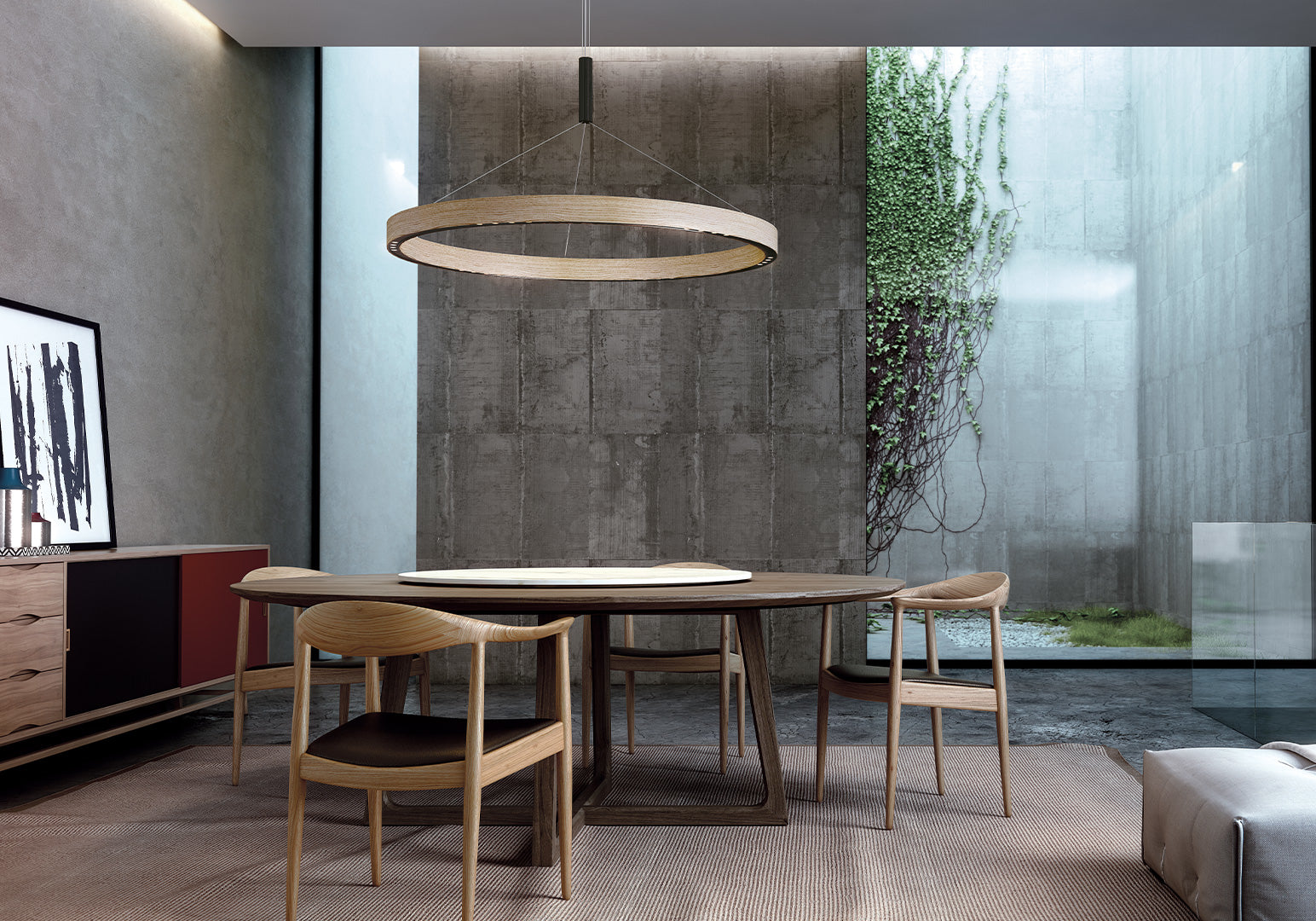

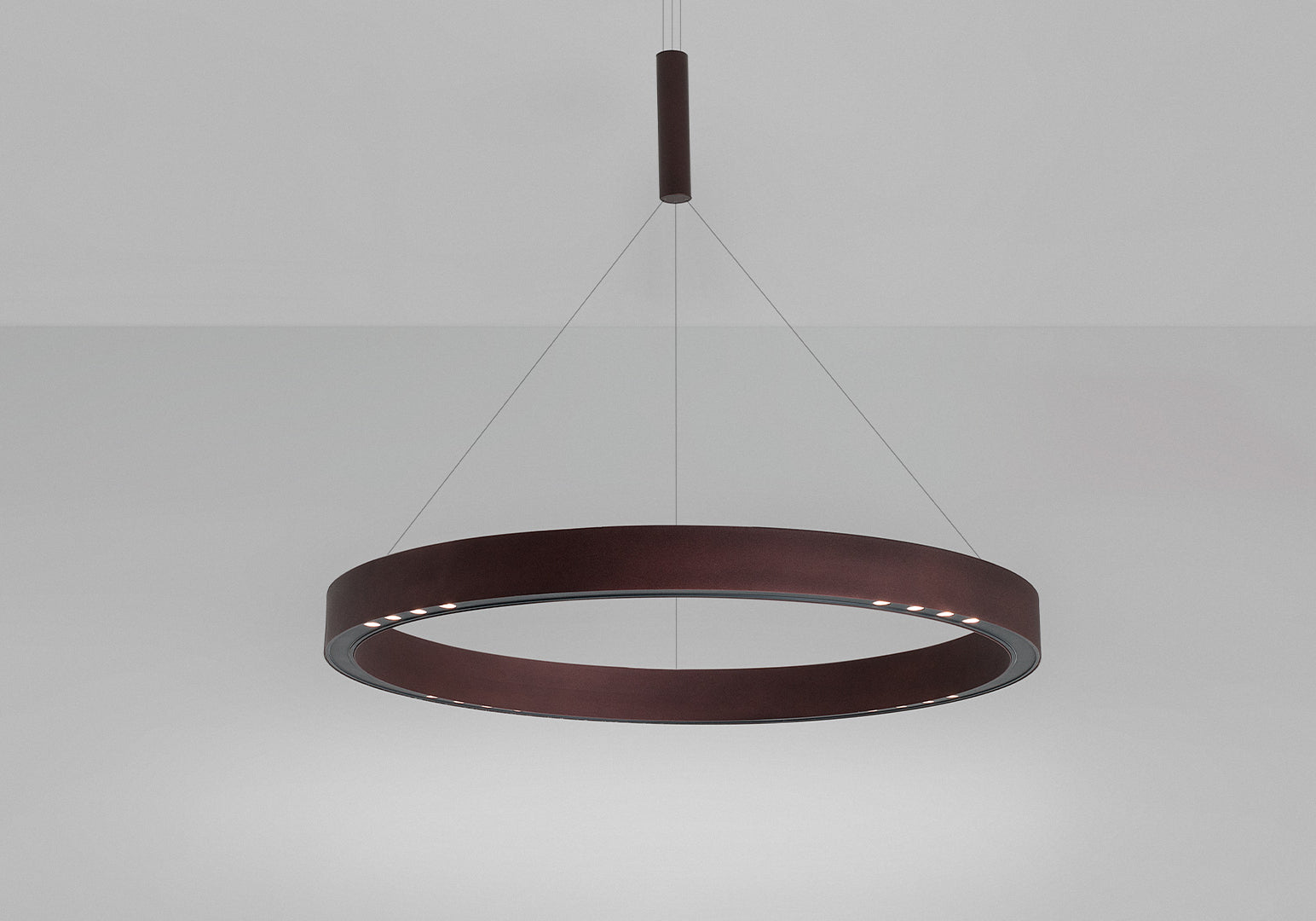

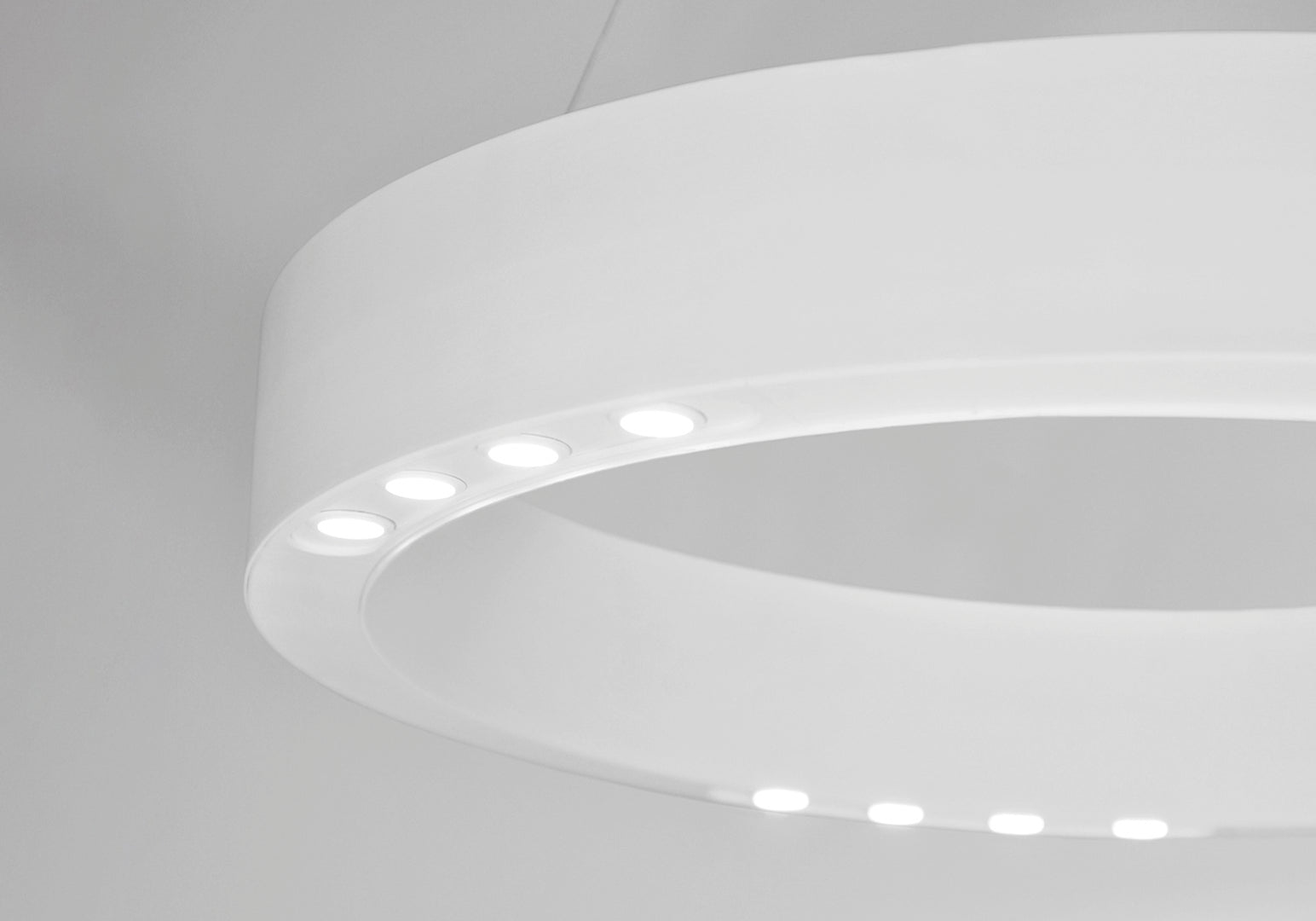

Suspension lamp in aluminum featuring a ring design, with a central cable to hang it. There is a model with flat canopy that allows you to hang the R2 from lower ceilings. Both models have LED spotlight modules that provide direct and uniform lighting. There is a third R2 model with flat canopy and indirect light called up/down. All R2 models are available with the following finishes: matte white, matte black, matte bronze, natural oak and natural walnut. Made in three sizes (S60, S90 and S120).

This is a UL Certified Lamp.

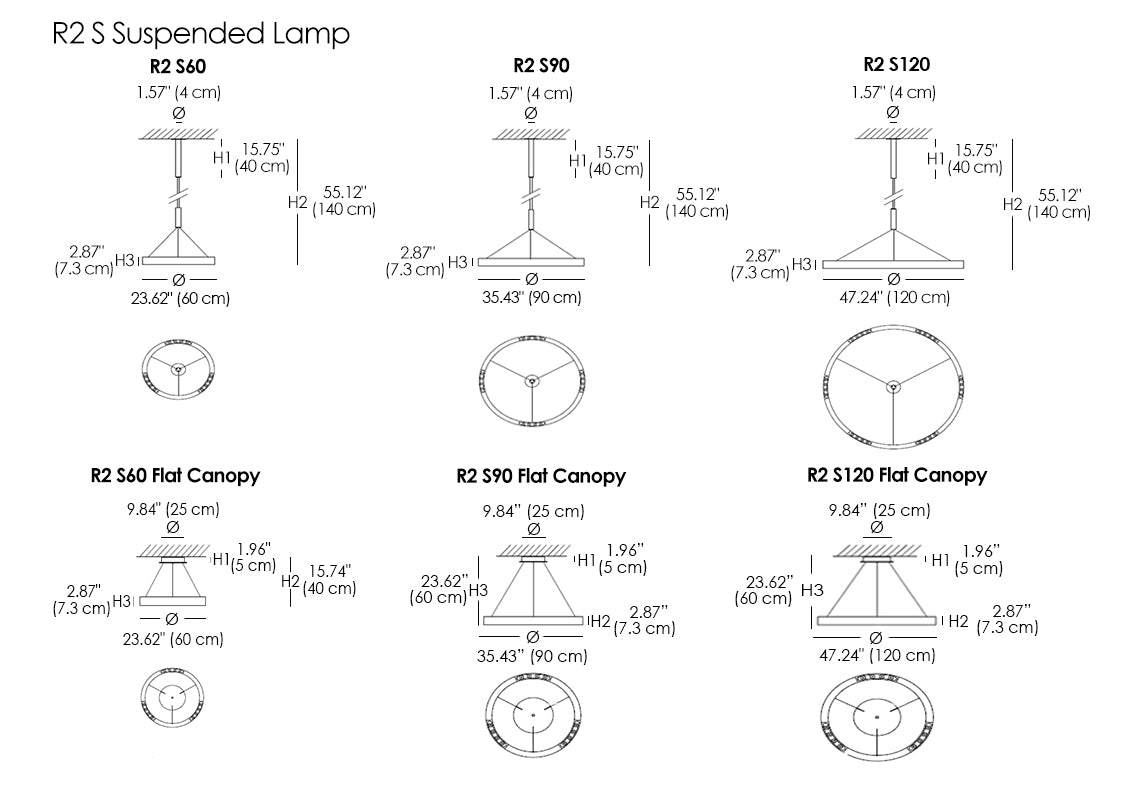

Specifications:

R2 S Suspended Lamp:

R2 S60:

Diameter: 23.62" (60 cm)
Canopy diameter: 1.57" (4 cm)
Canopy height: 15.75" (40 cm)
Height: 2.87" (7.3 cm)
Max height: 55.12" (140 cm)
LED: 3 x 18W
Luminaire flux: 7879lm
Milliampere: 250mA
Color temperature: 3000K
CRI: ≥90
Voltage: 110V DIM PUSH/DALI

R2 S60 Flat Canopy:

Diameter: 23.62" (60 cm)
Canopy diameter: 9.84" (25 cm)
Canopy height: 1.96" (5 cm)
Height: 2.87" (7.3 cm)
Overall height: 15.74" (40 cm)
LED: 3 x 18W
Luminaire flux: 7879lm
Milliampere: 250mA
Color temperature: 3000K
CRI: ≥90
Voltage: 110V DIM PUSH/DALI
DOWN LED: 3 x 18W
Luminaire flux: 7879lm
Milliampere: 250mA
Color temperature: 3000K
CRI: ≥90
Voltage: 110V
UP LED: 3 x 4.5W
Luminaire flux: 1638lm
Milliampere: 250mA
Color temperature: 3000K
CRI: ≥90
Voltage: 110V DIM PUSH/DALI

R2 S90:

Diameter: 35.43" (90 cm)
Canopy diameter: 1.57" (4 cm)
Canopy height: 15.75" (40 cm)
Height: 2.87" (7.3 cm)
Max height: 55.12" (140 cm)
LED: 4 x 18W
Luminaire flux: 9755lm
Milliampere: 250mA
Color temperature: 3000K
CRI: ≥90
Voltage: 110V DIM PUSH/DALI

R2 S90 Flat Canopy:

Canopy diameter: 9.84" (25 cm)
Diameter: 35.43" (90 cm)
Height: 2.87" (7.3 cm)
Canopy height: 1.96" (5 cm)
Overall Height: 23.62" (60 cm)
LED: 4 x 18W
Luminaire flux: 9755lm
Milliampere: 250mA
Color temperature: 3000K
CRI: ≥90
Voltage: 110V DIM PUSH/DALI
DOWN LED: 4 x 18W
Luminaire flux: 9755lm
Milliampere: 250mA
Color temperature: 3000K
CRI: ≥90
Voltage: 110V
UP LED: 4 x 4.5W
Luminaire flux: 2184lm
Milliampere: 250mA
Color temperature: 3000K
CRI: ≥90
Voltage: 110V DIM PUSH/DALI

R2 S120:

Diameter: 47.24" (120 cm)
Canopy diameter: 1.57" (4 cm)
Canopy height: 15.75" (40 cm)
Height: 2.87" (7.3 cm)
Max height: 55.12" (140 cm)
LED: 6 x 17W
Luminaire flux: 13957lm
Milliampere: 240mA
Color temperature: 3000K
CRI: ≥90
Voltage: 110V DIM PUSH/DALI

R2 S120 Flat Canopy:

Diameter: 47.24" (120 cm)
Canopy diameter: 12.20" (31 cm)
Canopy height: 1.96" (5 cm)
Height: 2.87" (7.3 cm)
Overall height: 23.62" (60 cm)
LED: 6 x 18W
Luminaire flux: 15758lm
Milliampere: 250mA
Color temperature: 3000K
CRI: ≥90
Voltage: 110V DIM PUSH/DALI
DOWN LED: 6 x 18W
Luminaire flux: 15758lm
Milliampere: 250mA
Color temperature: 3000K
CRI: ≥90
Voltage: 110V
UP LED: 6 x 4.5W
Luminaire flux: 3276lm
Milliampere: 250mA
Color temperature: 3000K
CRI: ≥90
Voltage: 110V DIM PUSH/DALI
